Arch Window Measuring Information print
  1. MEASURE HORIZONTALLY ACROSS THE WINDOW, FROM THE INSIDE OF THE FRAME ON THE LEFT TO THE INSIDE OF THE FRAME ON THE RIGHT.

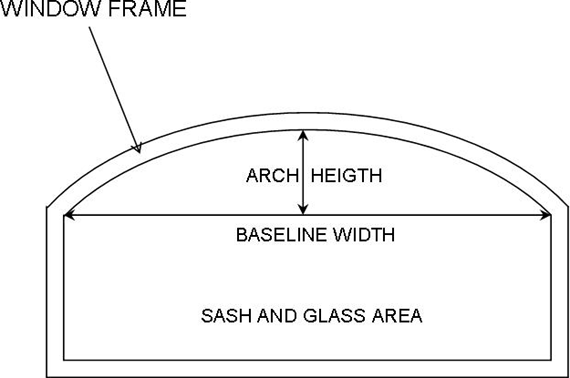

  2. MEASURE VERTICALLY THE ARCH HEIGHT AS SHOWN ON THE DRAWING BELOW.
  3. BE SURE TO MEASURE AT THE POINT WHERE THE ARCH FRAME AND THE VERTICAL FRAME INTERSECT.
  4. WITH THESE MEASUREMENTS WE WILL DETERMINE THE RADIUS AND WE WILL ADD FOR THE CASING REVEAL.
  5. WE WILL ADD EXTRA LENGTH ON EACH END TO ASSURE THE CASING WILL FIT CORRECTLY.


BASELINE WIDTH DIMENSION _________
ARCH HEIGHT DIMENSION ________
